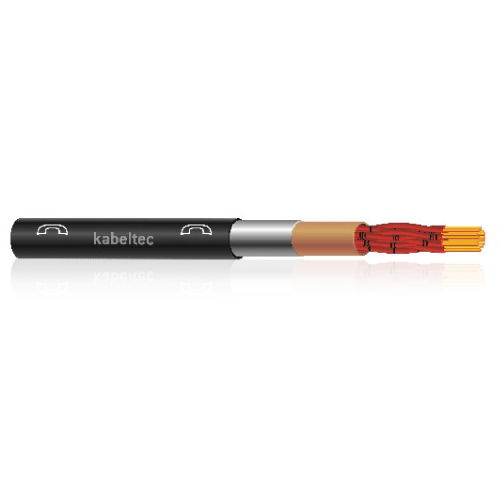

Telephone outdoor cable employed at local level for PBX systems and as connecting cable in installations and industrial plant as well as in telecommunication and IT systems. Suitable for fixed laying in dry and moist rooms.
A-2Y(L)2Y…St_III_Bd.
According to VDE 0816
CONSTRUCTION:
- Solid bare copper conductor
- PE insulated cores
- Star quad cable (4-paired cables have cores twisted in pairs); 5 star quads twisted to form a primary bunch. Primary or main bunches twisted to form a core assembly
- (L) = Layer sheath consisting of plastic laminated aluminium tape and welded PE sheath
- Outer sheath: black (RAL 9005)
Technical Data:
| Conductor Material | Copper ,bare |
| Conductor class | singe wire |
| Core insulation | PE |
| Core identification | Basic colours with black printed rings |
| Stranding |
Star quad cable (4-paired cables have cores twisted in pairs) 5 star quads twisted to form a primary bunch
|
| Outer sheath | PE |
| Sheath colour | Black (RAL 9005) |
| Rated voltage [V] | 225 |
| Testing voltage [V] | core/core 500 V; core/screen 2000 |
| Conductor resistance | Loop: 0,6 mm² max. 130 Ω/km 0,8 mm² max. 73,2 Ω/km |
| Insulation resistance | > 5 GΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | 7.5 x d |
| Min. bending radius moved [xd] | 10 x d |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -20°C up to +50 |
| Temp at conductor max. | * |
| Burning behaviour | * |
| Approvals | VDE 0816 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 841020060.00 | 2 x 2 x 0.60 | 10.50 | 1.10 | 8.10 |
| 851020080.00 | 2 x 2 x 0.80 | 12.50 | 2.00 | 10.00 |
| 841040060.00 | 4 x 2 x 0.60 | 11.00 | 2.30 | 12.60 |
| 851040080.00 | 4 x 2 x 0.80 | 13.00 | 4.00 | 16.50 |
| 841060060.00 | 6 x 2 x 0.60 | 11.50 | 3.40 | 13.00 |
| 851060080.00 | 6 x 2 x 0.80 | 13.50 | 6.00 | 18.00 |
| 841100060.00 | 10 x 2 x 0.60 | 13.00 | 5.70 | 16.50 |
| 851100080.00 | 10 x 2 x 0.80 | 15.00 | 10.10 | 24.00 |
| 841200060.00 | 20 x 2 x 0.60 | 16.00 | 11.30 | 27.00 |
| 851200080.00 | 20 x 2 x 0.80 | 18.00 | 20.10 | 39.50 |
| 841300060.00 | 30 x 2 x 0.60 | 18.00 | 17.00 | 35.50 |
| 851300080.00 | 30 x 2 x 0.80 | 21.00 | 30.20 | 54.50 |
| 841400060.00 | 40 x 2 x 0.60 | 19.50 | 22.60 | 44.20 |
| 851400080.00 | 40 x 2 x 0.80 | 23.50 | 40.20 | 67.00 |
| 841500060.00 | 50 x 2 x 0.60 | 21.00 | 28.30 | 52.80 |
| 851500080.00 | 50 x 2 x 0.80 | 25.00 | 50.30 | 84.50 |
| 851600080.00 | 60 x 2 x 0.80 | 27.00 | 60.30 | 96.50 |
| 841700060.00 | 70 x 2 x 0.60 | 23.50 | 39.60 | 71.00 |
| 851700080.00 | 70 x 2 x 0.80 | 28.50 | 70.40 | 112.00 |
| 851800080.00 | 80 x 2 x 0.80 | 29.50 | 80.40 | 125.00 |
| 8411000060.00 | 100 x 2 x 0.60 | 27.00 | 56.50 | 96.00 |
| 8511000080.00 | 100 x 2 x 0.80 | 32.50 | 100.50 | 153.00 |
| 8411500060.00 | 150 x 2 x 0.60 | 32.70 | 84.80 | 135.00 |
| 8511500080.00 | 150 x 2 x 0.80 | 40.00 | 150.80 | 222.00 |
| 8412000060.00 | 200 x 2 x 0.60 | 36.70 | 113.10 | 176.00 |
| 8512000080.00 | 200 x 2 x 0.80 | 43.30 | 201.00 | 293.00 |
| 8412500060.00 | 250 x 2 x 0.60 | 39.50 | 141.40 | 214.20 |
| 8512500080.00 | 250 x 2 x 0.80 | 51.40 | 251.40 | 358.50 |
| 8413000060.00 | 300 x 2 x 0.60 | 42.80 | 169.60 | 253.00 |
| 8513000080.00 | 300 x 2 x 0.80 | 54.50 | 301.60 | 423.00 |
| 8413500060.00 | 350 x 2 x 0.60 | 47.50 | 197.90 | 296.00 |
| 8513500080.00 | 350 x 2 x 0.80 | 57.00 | 351.90 | 496.00 |
| 8414000060.00 | 400 x 2 x 0.60 | 50.50 | 226.20 | 335.00 |
| 8514000080.00 | 400 x 2 x 0.80 | 60.50 | 402.20 | 557.00 |
| 8415000060.00 | 500 x 2 x 0.60 | 53.50 | 282.70 | 408.00 |
| 8515000080.00 | 500 x 2 x 0.80 | 68.50 | 502.70 | 698.00 |
| 8416000060.00 | 600 x 2 x 0.60 | 60.00 | 339.20 | 492.00 |
| 8516000080.00 | 600 x 2 x 0.80 | 73.50 | 603.20 | 826.00 |
| 8417000060.00 | 700 x 2 x 0.60 | 64.00 | 395.80 | 565.00 |
| 8418000060.00 | 800 x 2 x 0.60 | 69.00 | 452.30 | 649.00 |
| 84110000060.00 | 1000 x 2 x 0.60 | 75.00 | 565.40 | 796.00 |
