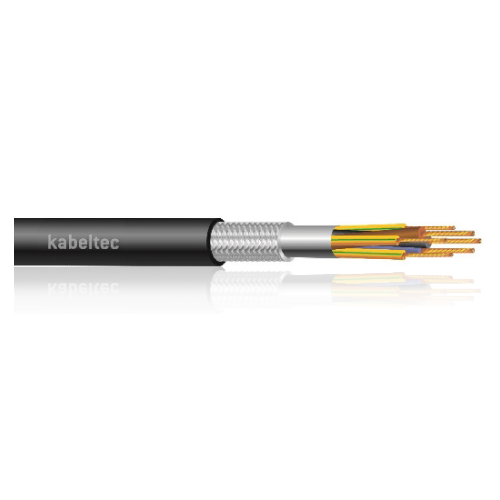

2YSLCYK-J 3 PLUS VFD BLACK

EMC control cable double shielded 100% aluminum foil 75% copper braid tinned
TOTAL PRICE

SGD 0.00

Motor connecting cable with overall copper braided screening used for the connection of a frequency converter with a frequency converter motor. Employed in connection with machine tools, handling gear, machining and processing equipment, industrial robots, assembly lines, etc. when exposed to harsh mechanical strain. Fixed installation and occasional free movement, in dry, moist, and wet rooms.

2YSCLYK-J 3 PLUS
Special characteristics:

  • Low capacitance
  • Excellent EMC performance
  • Outdoor installation (black outer sheath)

Power ratings (30°C Air temperature):

  • 3×1,5+3G0,25 18 Amp
  • 3×2,5+3G0,5 26 Amp
  • 3×4+3G0,75 34 Amp
  • 3×6+3G1,0 44 Amp
  • 3×10+31,5 61 Amp
  • 3×16+3G2,5 82 Amp
  • 3×25+3G4 108 Amp
  • 3×35+3G6 135 Amp
  • 3×50+3G10 168 Amp
  • 3×70+3G10 207 Amp
  • 3×95+3G16 250 Amp
  • 3×120+3G16 292 Amp
  • 3×150+3G25 335 Amp
  • 3×185+3G35 382 Amp
  • 3×240+3G50 453 Amp

CONSTRUCTION:

  • Fine wire of plain copper wires
  • Strand structure, according to VDE 0295, class 5
  • Core insulation of Polyethylen (PE)
  • Core Identification: black, brown, grey, 3xgreen/yellow
  • Concentric twisted cores (splitted green-yellow earth conductor)
  • Aluminium foil, screen braiding of copper wires
  • Outer sheath special PVC
  • Outer sheath color black
  • Shield connector:
  • To observe radio shielding acc. to EN 55011, the screen has to be contracted all around, both-sided and extensive.

TECHNICAL DATA:

Conductor Material Copper, bare
Conductor class Class 5, resp IEC 60228 cl 5
Core insulation Polyethylene (PE)
Core identification
Colour coded conductors: black, brown, grey and splitted green-yellow protective conductor
Stranding Concentric twisted cores
Outer sheath Special PVC
Sheath colour black
Rated voltage [V] 600 / 1000
Testing voltage [V] 4000 V
Conductor resistance
Insulation resistance 20 MΩ x km
Current carrying capacity see above
Min. bending radius fixed [xd] 4 x d
Min. bending radius moved [xd] 15 xd
Working temp fixed min/max [C] -30°C up to +70°C
Working temp moved min/mac [C] -5°C up to +70°C
Temp at conductor max. +70°C in operation +160°C in case of short-circuit
Burning behaviour IEC 60332-1: flame-retardant and self-extinguishing
Approvals VDE 0207/0250/0295

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
18030150sw 3 x 1.50 + 3 G 0.25 10.2 9.1 15.6
18030250sw 3 x 2.50 + 3 G 0.5 10.2 9.1 15.6
18030400sw 3 x 4 + 3 G 0.75 11.9 15.3 26.1
18030600sw 3 x 6 + 3 G 1 14.1 22.4 33.7
18031000sw 3 x 10 + 3 G1.5 15.8 29.8 42
18031600sw 3 x 16 + 3 G 2.5 23.4 74.1 95.3
18032500sw 3 x 25 + 3 G 4 26.2 120.4 140.4
18033500sw 3 x 35 + 3 G 6 29 153.5 179.6
18035000sw 3 x 50 + 3 G 10 34.6 220.8 251.2
18037000sw 3 x 70 + 3 G 10 38.8 287.4 311.4
18039500sw 3 x 95 + 3 G 16 45 395.3 446.4
180312000sw 3 x 120 + 3 G 16 50.8 486.9 532.7
180315000sw 3 x 150 + 3 G 25 55.2 545.7 605.7
180318500sw 3 x 185 + 3 G 35 62 696.9 763.9
180324000sw 3 x 240 + 3 G 50 67 919.8 1041.2
