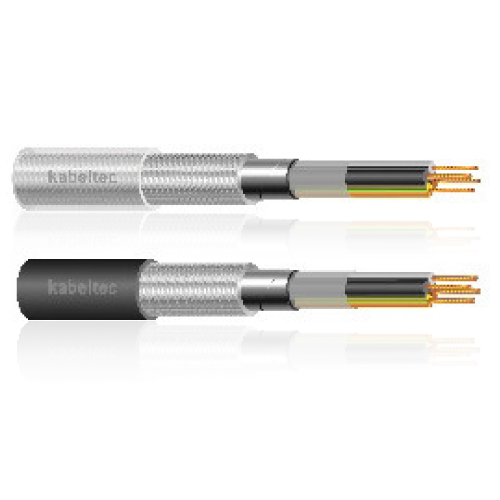

2YSLCY-J/2YSLCYK-J EMC + Black VFD

EMC Control Cable Double Screeened 100% Alu Foil 75% Tinned copper wire braid

TOTAL PRICE

SGD 0.00

Motor connecting cable with overall copper braided screening used for the connection of a frequency converter with a frequency converter motor. Employed in connection with machine tools, handling gear, machining and processing equipment, industrial robots, assembly lines, etc. when exposed to harsh mechanical strain. Fixed installation and occasional free movement, in dry, moist, and wet rooms. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology.

Current-Carrying Capacity(30°C Air temperature):
-4G1,5 18 Amp
-4G2,5 26 Amp
-4G4 34 Amp
-4G6 44 Amp
-4G10 61 Amp
-4G16 82 Amp
-4G25 108 Amp
-4G35 135 Amp
-4G50 168 Amp
-4G70 207 Amp
-4G95 250 Amp
-4G120 292 Amp
-4G150 335 Amp
-4G185 385 Amp
-4G240 453 Amp

Application

  • Stranded bare CU conductor, fine wire
  • Strand structure. according to VDE 0295, class 5
  • Core insulation: PE
  • Core colours: grey, black, brown and green-yellow earth conductor
  • Cores twisted in layers
  • Aluminium foil screen (100% coverage)
  • Tinned copper braided screening
  • Outer sheath: PVC
  • Colour: transparent or black

TECHNICAL DATA:

Conductor Material Copper, bare
Conductor class Class 5 or IEC 60228 cl. 5
Core insulation Polyethylene (PE)
Core identification Core colours: grey, black, brown and green-yellow earth conductor
Stranding
Cores twisted in layers protective earth split into three, arranged symmetrically every 120°
Outer sheath Special PVC, enforced
Sheath colour 2YSLCY-J – transparent 2YSLCYK-J – black
Rated voltage [V] 600 / 1000
Testing voltage [V] 4000
Conductor resistance DIN VDE 0295, bzw. IEC 60228
Insulation resistance 20 MΩ x km
Current carrying capacity see above
Min. bending radius fixed [xd] up to 12mm Ø: 5 x d up to 20mm Ø: 7.5 x d > 20mm Ø: 10
Min. bending radius moved [xd] up to 12mm Ø: 10 x d up to 20mm Ø: 15 x d > 20mm Ø: 20
Working temp fixed min/max [C] -30°C up to +70°C
Working temp moved min/mac [C] -5°C up to +70°C
Temp at conductor max. +70°C in operation +160°C in case of short-circuit
Burning behaviour
IEC 60332-1, VDE 0482-332-1-2: flame-retardant and self-extinguishing
Approvals VDE 0207 | 0250 | 0295 Oil Resistant: EN 60811-2-1

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
18040150SW 4 x 1.50 12.30 9.40 21.20
18040150 4 x 1.50 12.30 9.40 21.20
18040250SW 4 x 2.50 13.30 15.00 27.00
18040250 4 x 2.50 13.30 15.00 27.00
18040400SW 4 x 4 14.70 23.50 36.20
18040400 4 x 4 14.70 23.50 36.20
18040600SW 4 x 6 16.00 32.00 59.00
18040600 4 x 6 16.00 32.00 59.00
18041000SW 4 x 10 18.80 53.30 80.00
18041000 4 x 10 18.80 53.30 80.00
18041600SW 4 x 16 23.40 78.90 119.40
18041600 4 x 16 23.40 78.90 119.40
18042500SW 4 x 25 27.00 123.90 172.40
18042500 4 x 25 27.00 123.90 172.40
18043500SW 4 x 35 32.70 166.20 241.20
18043500 4 x 35 32.70 166.20 241.20
18045000SW 4 x 50 36.10 234.40 273.70
18045000 4 x 50 36.10 234.40 273.70
18047000SW 4 x 70 42.30 319.60 365.20
18047000 4 x 70 42.30 319.60 365.20
18049500SW 4 x 95 47.70 431.60 488.90
18049500 4 x 95 47.70 431.60 488.90
180412000SW 4 x 120 51.90 542.80 574.00
180412000 4 x 120 51.90 542.80 574.00
180415000SW 4 x 150 58.80 644.70 704.30
180415000 4 x 150 58.80 644.70 704.30
180418500SW 4 x 185 61.10 763.90 915.00
180418500 4 x 185 61.10 763.90 915.00
180424000SW 4 x 240 70.00 1004.30 1250.00
180424000 4 x 240 70.00 1004.30 1250.00
