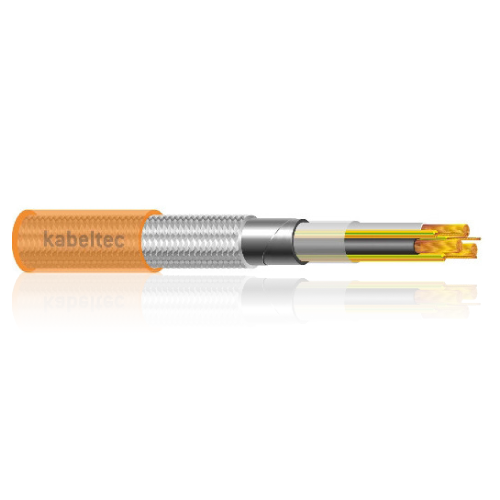

2XSLCY-J TRANSPARENT/ORANGE – 2XSLCYK-J BLACK VFD

EMC Control Cable Double Screened 100% Alu Foil 85% Tinned copper wire braid
TOTAL PRICE

SGD 0.00

Cables with a special construction, used to supply power to motors from frequency converters while maintaining full electromagnetic compatibility (EMC). The crosslinked XLPE polyethylene insulation improves current-carrying capacity, while at the same time maintaining low cable capacitance in comparison with cables with a PVC insulation. The cables are suitable for both fixed installation and movable connections in industrial equipment, process lines, and machines operating in dry and damp rooms. The symmetric construction of the cable (3+3PE) ensures the symmetry of supply voltages on the motor terminals. The 3plus2XSLCYK cable has been developed for external applications and direct underground installations.

Current-Carrying Capacity (30°C Air temperature):

  • 3×1,5+3G0,25 23 Amp
  • 3×2,5+3G0,5 32 Amp
  • 3×4+3G0,75 42 Amp
  • 3×6+3G1,0 54 Amp
  • 3×10+31,5 75 Amp
  • 3×16+3G2,5 100 Amp
  • 3×25+3G4 127 Amp
  • 3×35+3G6 158 Amp
  • 3×50+3G10 192 Amp
  • 3×70+3G10 246 Amp
  • 3×95+3G16 298 Amp
  • 3×120+3G16 346 Amp
  • 3×150+3G25 399 Amp
  • 3×185+3G35 456 Amp
  • 3×240+3G50 528 Amp

CONSTRUCTION

  • Conductors: bare, annealed copper
  • Multi-stranded class 5 acc. to EN 60228
  • Cross-linked XLPE polyethylene insulation
  • Core identification: black, brown, grey, green/yellow
  • Symmetric conductor construction
  • Aluminium foil scree 100% coverage
  • Tinned wire copper braid 85% coverage
  • Outer sheath made of a special type of PVC
  • Outer sheath color: transpart- orange or black

TECHNICAL DATA:

Conductor Material Copper, bare
Conductor class Class 5
Core insulation XLPE cross-linked polyethylene
Core identification black, brown, grey, green/yellow
Stranding
cores twisted together in symmetric construction, protective earth split into three, arranged symmetrically every 120°
Outer sheath special PVC
Sheath colour transparent/orange or black
Rated voltage [V] 0.6/1 k
Testing voltage [V] 2500
Conductor resistance
Insulation resistance 200MΩxkm
Current carrying capacity see above
Min. bending radius fixed [xd] up to 20 mm Ø: 7,5 x d > 20 mm Ø: 10 x d
Min. bending radius moved [xd] up to 20 mm Ø : 10 x d up to 20 mm Ø: 15 x d > 20 mm Ø: 10 x d
Working temp fixed min/max [C] -40°C up to +80°C
Working temp moved min/mac [C] -5°C up to +80°C
Temp at conductor max. 90°C
Burning behaviour
Approvals

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
180215000SW/X 2 x 150 44.10 268.00 370.20
18030150OR 3 x 1.50 + 3 x 0.25 10.50 8.60 14.00
18030150SW/X 3 x 1.50 +3x0.25 10.50 8.60 14.00
18030250OR 3 x 2.50 + 3 x 0.5 11.50 14.30 21.90
18030250SW/X 3 x 2.50 +3x0.5 11.50 14.30 21.90
18030400OR 3 x 4 + 3 x 0.75 12.70 22.40 32.30
18030400SW/X 3 x 4 +3x0.75 12.70 22.40 32.30
18030600OR 3 x 6 + 3 x 1 14.10 29.80 42.90
18030600SW/X 3 x 6 +3x1 14.10 29.80 42.90
18031000OR 3 x 10 + 3 x 1.5 16.20 49.10 61.50
18031000SW/X 3 x 10 3x1.5 16.20 49.10 61.50
18031600OR 3 x 16 + 3 x 2.5 18.50 72.30 81.90
18031600SW/X 3 x 16 3x2.5 18.50 72.30 81.90
18032500OR 3 x 25 + 3 x 4 22.80 113.70 132.40
18032500SW/X 3 x 25 +3x4 22.80 113.70 132.40
18033500OR 3 x 35 + 3 x 6 25.20 153.50 171.80
18033500SW/X 3 x 35 3x6 25.20 153.50 171.80
18035000OR 3 x 50 + 3 x 10 29.20 220.70 239.80
18035000SW/X 3 x 50 +3x10 29.20 220.70 239.80
18037000OR 3 x 70 + 3 x 10 33.90 287.10 305.50
18037000SW/X 3 x 70 +3x10 33.90 287.10 305.50
18039500OR 3 x 95 + 3 x 16 37.80 395.30 416.10
18039500SW/X 3 x 95 +3x16 37.80 395.30 416.10
180312000OR 3 x 120 + 3 x 16 41.10 483.60 507.30
180312000SW/X 3 x 120 +3x16 41.10 483.60 507.30
180315000OR 3 x 150 + 3 x 25 47.00 541.10 612.70
180315000SW/X 3 x 150 +3x25 47.00 541.10 612.70
180318500OR 3 x 185 + 3 x 35 52.60 696.80 718.90
180318500SW/X 3 x 185 +3x35 52.60 696.80 718.90
180324000OR 3 x 240 + 3 x 50 60.70 854.00 960.00
180324000SW/X X 3 x 240 +3x50 60.70 854.00 960.00
18040150SW/X 4 x 1.50 11.30 9.50 23.00
18040250SW/X 4 x 2.50 12.40 15.00 30.00
18040400SW/X 4 x 4 13.60 23.50 48.50
18040600SW/X 4 x 6 14.80 32.00 63.00
18041000SW/X 4 x 10 17.50 53.30 86.00
18041600SW/X 4 x 16 20.20 78.90 129.00
18042500SW/X 4 x 25 24.80 123.60 186.00
18043500SW/X 4 x 35 27.40 166.20 261.00
18045000SW/X 4 x 50 32.00 234.50 295.00
18047000SW/X 4 x 70 37.10 319.60 395.00
18049500SW/X 4 x 95 41.60 431.60 530.00
180412000SW/X 4 x 120 45.20 543.50 660.00
180415000SW/X 4 x 150 52.00 639.40 704.00
1804185000SW/X 4 x 185 58.10 763.90 838.00
180424000SW/X 4 x 240 66.10 1002.00 1130.00
