2XSLCHK-J LSOH VFD

EMC Control Cable Double Screened Halogen-free
TOTAL PRICE

SGD 0.00

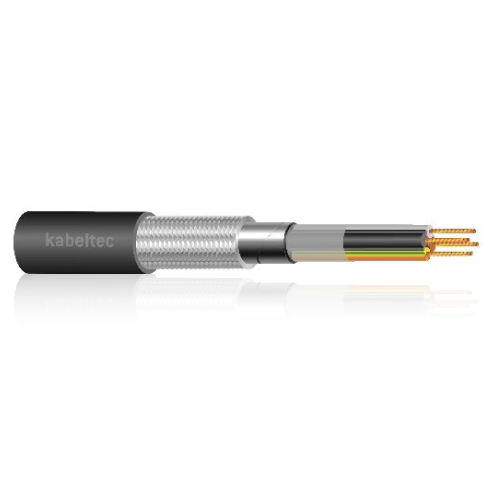

Cables with special construction, used to supply power to motors from frequency converters while maintaining full electromagnetic compatibility (EMC). The XLPE insulation improves current carrying capacity maintaining at the same time low capacitance in comparison to PVC insulated cables. The cables are suitable for both fixed installation and flexible connections in industrial equipment, process lines, and machines operating in dry and damp rooms, also in public buildings. The entire cable is made of halogen-free materials and does not emit noxious substances under fire conditions.

Current-Carrying Capacity(30°C Air temperature):

  • 4G1,5 23 Amp
  • 4G2,5 32 Amp
  • 4G4 42 Amp
  • 4G6 54 Amp
  • 4G10 75 Amp
  • 4G16 100 Amp
  • 4G25 127 Amp
  • 4G35 158 Amp
  • 4G50 192 Amp
  • 4G70 246 Amp
  • 4G95 298 Amp
  • 4G120 346 Amp
  • 4G150 399 Amp
  • 4G185 456 Amp
  • 4G240 528 Amp

CONSTRUCTION:

  • Conductors: bare, annealed copper
  • Conductors, multi-stranded class 5 acc. to EN 60228
  • Insulation: cross-linked polyethylene (XLPE)
  • Core identification: black, brown, grey, green/yellow
  • Core arrangement: cores twisted together in symmetric construction
  • Screens: electrostatic screen made of aluminium backed polyester tape 100% and a second screen made of tinned copper wire braid
  • Outer sheath: special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1, IEC 60332-24, IEC 60332-3 cat. A)
  • Outer sheath colour: black

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: lass 5 acc. to EN 60228
Core insulation: Cross-linked polyethylene (XLPE), PN-EN 60811-201/202/203
Core identification: Black, brown, grey, green-yellow
Stranding Cores: Twisted together in symmetric construction
Outer sheath: Special halogen free compound
Sheath colour: Black, UV-resistant
Rated voltage [V]: 600 / 1000
Testing voltage [V]: 2500
Conductor resistance:
Insulation resistance: 200MΩxkm
Current carrying capacity: see above Min. bending radius fixed [xd]: up to 20 mm Ø: 7,5 x d > 20 mm Ø: 10 x d
Min. bending radius moved [xd]: up to 20 mm Ø : 10 x d bis 20 mm Ø: 15 x d > 20 mm Ø: 10 x d
Working temp fixed min/max [C]: -40°C up to + 80°C
Working temp moved min/mac [C]: -5°C up to + 80°C
Temp at conductor max.: +90°C
Burning behaviour: PN-EN 60332-1, PN-EN 60332-3, IEC 60332-3:flameretardant and self-extinguishing
Approvals: halogen free: IEC 60754-1, VDE 0482-267-2-1, EN 50267-2-1, PN-EN 50267
Low Smoke Emissions : PN-EN 61034-1 PN-EN 61034-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
18040400SW/LSOH 4 x 4.0 13.60 23.50 48.50
18040600SW/LSOH 4 x 6.0 14.80 32.00 63.00
18041000SW/LSOH 4 x 10.0 17.50 53.30 86.00
18041600SW/LSOH 4 x 16.0 20.20 78.90 129.00
18042500SW/LSOH 4 x 25.0 24.80 123.60 186.00
18043500SW/LSOH 4 x 35.0 27.40 166.20 261.00
18045000SW/LSOH 4 x 50.0 32.00 234.50 295.00
18047000SW/LSOH 4 x 70.0 37.10 319.60 395.00
18049500SW/LSOH 4 x 95.0 41.60 431.60 530.00
180412000SW/LSOH 4 x 120.0 45.20 543.50 660.00
180415000SW/LSOH 4 x 150.0 52.00 639.40 704.00
180418500SW/LSOH 4 x 150.0 58.10 763.90 838.00
180424000SW/LSOH 4 x 240.0 66.10 1002.00 1130.00
18040250SW/LSOH 4 x 2.5 12.40 15.00 30.00
