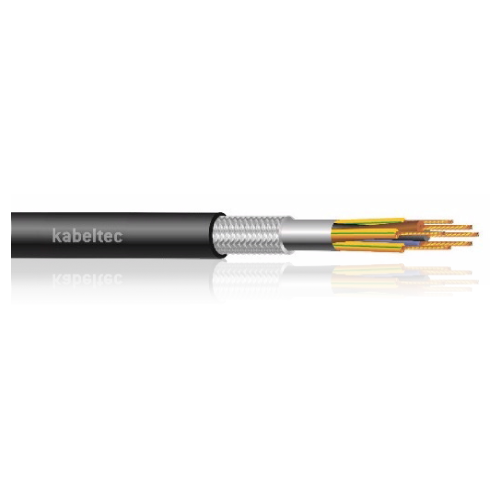

2XSLCHK-J 3PLUS VFD

EMC Control Cable Double Screened Halogen-free

TOTAL PRICE

SGD 0.00

APPLICATION

Cables with special construction, used to supply power to motors from frequency converters while maintaining full electromagnetic compatibility (EMC). The XLPE insulation improves current carrying capacity maintaining at the same time low capacitance in comparison to PVC insulated cables. The cables are suitable for both fixed installation and flexible connections in industrial equipment, process lines, and machines operating in dry and damp rooms, also in public buildings. The entire cable is made of halogen-free materials and does not emit noxious substances under fire conditions. The symmetric construction of the cable (3 + 3PE) ensures symmetry of voltages on motor terminals.

Current-Carrying Capacity (30°C Air temperature):

  • 3×1,5+3G0,25 23 Amp
  • 3×2,5+3G0,5 32 Amp
  • 3×4+3G0,75 42 Amp
  • 3×6+3G1,0 54 Amp
  • 3×10+31,5 75 Amp
  • 3×16+3G2,5 100 Amp
  • 3×25+3G4 127 Amp
  • 3×35+3G6 158 Amp
  • 3×50+3G10 192 Amp
  • 3×70+3G10 246 Amp
  • 3×95+3G16 298 Amp
  • 3×120+3G16 346 Amp
  • 3×150+3G25 399 Amp
  • 3×185+3G35 456 Amp
  • 3×240+3G50 528 Amp

CONSTRUCTION

  • Conductors: bare, annealed copper conductors
  • Multi-stranded class 5 acc. to EN 60228
  • Insulation: cross-linked polyethylene (XLPE)
  • Core identification: black, brown, grey, 3x green-yellow (3 + 3PE)
  • Core arrangement: cores twisted together in symmetric construction
  • Electrostatic screen made of aluminium backed polyester tape 100% coverage
  • Second screen made of tinned copper wire braid with coverage
  • Outer sheath: special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1, IEC 60332-24, IEC 60332-3 cat. A)
  • Outer sheath colour: black, UV resistant

TECHNICAL DATA

Conductor Material:  Copper, bare
Conductor class:  Class 5 acc. to EN 60228
Core insulation:  Cross-linked polyethylene (XLPE); EN 60811-201/202/203
Core identification:  black, brown, grey 3x green-yellow (3 + 3PE)
Stranding:  Cores twisted together in symmetric construction, protective earth split into three arranged symetrically every 120°
Outer sheath: Special halogen-free compound
Sheath colour: Black, UV-resistant
Rated voltage [V]:  600 / 1000
Testing voltage [V]:  2500
Conductor resistance:  acc. to EN60228
Insulation resistance:  >200MΩxkm
Current carrying capacity:  as above
Min. bending radius fixed [xd]:  up to: 20 mm Ø: 7,5 x d > 20 mm Ø: 10 x d
Min. bending radius moved [xd]:  up to: 20 mm Ø: 10 x d up to 20 mm Ø: 15 x d > 20 mm Ø: 10 x d
Working temp fixed min/max [C]:  -40°C up to + 80°C
Working temp moved min/mac [C]:  -5°C up to + 80°C
Temp at conductor max.:  +90°C
Burning behaviour:  EN 60332-1, EN 60332-3, IEC 60332-3:flame-retardantand self-extinguishing
Approvals:  VDE 0295 UV resistant Low Smoke Emissions : EN 61034-1

EN 61034-2 Halogen Free : EN 50267-2-2



PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
18030250SW/LSOH 3 x 2.50 +3G0.5 12.20 14.30 21.90
18030400SW/LSOH 3 x 4 +3G0.75 13.50 22.40 32.30
18030600SW/LSOH 3 x 6 +3G1 14.70 29.80 42.90
18031000SW/LSOH 3 x 10 +3G1.50 17.00 49.10 61.50
18031600SW/LSOH 3 x 16 +3G2.50 19.70 72.30 81.90
18032500SW/LSOH 3 x 25 +3G4 24.0 113.70 132.40
18033500SW/LSOH 3 x 35 +3G6 26.20 153.50 171.80
18035000SW/LSOH 3 x 50 +3G10 30.10 220.70 239.80
18037000SW/LSOH 3 x 70 +3G10 35.20 287.10 305.50
18039500SW/LSOH 3 x 95 +3G16 39.10 395.30 416.10
180312000SW/LSOH 3 x 120 +3G16 42.50 483.60 507.30
180315000SW/LSOH 3 x 150 +3G25 48.60 541.10 612.70
180318500SW/LSOH 3 x 185 +3G35 54.20 696.80 718.90
180324000SW/LSOH 3 x 240 +3G50 60.50 854.00 959.40
