Control cable for the North American and Canadian markets in machine tool manufacturing, in heating and air conditioning, etc. Used as measuring, power and control cable in machine tool manufacturing, plant engineering lines. For unrestricted mobility without forced movement control and without exposure to tensile load. Suitable in dry and moist rooms with low mechanical strain but not outdoors.

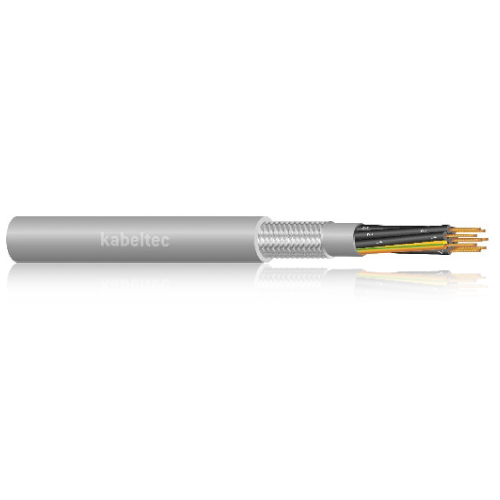

2-Norm (UL/CSA-CY)
Approved control cable, screened
CONSTRUCTION:
- Fine strands of bare copper wires
- PVC outer sheath, grey (RAL 7001)
- UL AWM Style 2587
- Oil-resistant outer sheath, PVC-TM5
- Available with and without inner sheath
- Braiding of copper wires
- PVC core insulation colour coded
- CSA AWM IA/B IIA/B FT1
- Earth conductor green/yellow in the outer layer
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: | Acc. to DIN VDE 0293: Black cores with white numerals |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | UL/CSA: 600 |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | according to DIN VDE 0295 Cl. 5 |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 12.5 x d |
| Working temp fixed min/max [C]: | -40°C up to +90°C |
| Working temp moved min/mac [C]: | -5°C up to +90°C |
| Temp at conductor max.: | +70°C in operation |
| +150°C in case of IEC 60332-1; VW1; CSA FT1 | |
| Burning behaviour: | IEC 60332-1; VW1; CSA FT1 |
| Approvals: | EN 50363-4-1 oil-resistant UL-AWM Style 2587, CSA-AWM |
| I A/B II A/B |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 141020050 | 2 x 0.50 AWG 20 | 7.80 | 3.20 | 9.00 |
| 141020075 | 2 x 0.75 AWG19 | 8.20 | 4.20 | 10.80 |
| 141020100 | 2 x 1 AWG 18 | 8.50 | 4.70 | 11.70 |
| 141020150 | 2 x 1.50 AWG 16 | 9.00 | 5.50 | 12.80 |
| 141020250 | 2 x 2.50 AWG 14 | 10.00 | 7.70 | 17.20 |
| 141030050 | 3 x 0.50 AWG 20 | 8.10 | 4.20 | 10.00 |
| 141030100 | 3 x 1 AWG 18 | 8.80 | 5.60 | 12.30 |
| 141030075 | 3 x 0.75 AWG19 | 8.60 | 5.00 | 12.10 |
| 141030150 | 3 x 1.50 AWG 16 | 9.30 | 7.30 | 14.70 |
| 141030250 | 3 x 2.50 AWG 14 | 10.50 | 10.80 | 20.40 |
| 141030400 | 3 x 4 AWG 12 | 13.00 | 19.90 | 28.60 |
| 141030600 | 3 x 6 AWG 10 | 15.00 | 23.30 | 38.10 |
| 141040050 | 4 x 0.50 AWG 20 | 8.50 | 4.50 | 11.50 |
| 141040100 | 4 x 1 AWG 18 | 9.30 | 6.80 | 14.70 |
| 141040075 | 4 x 0.75 AWG 19 | 9.20 | 5.70 | 13.70 |
| 141040150 | 4 x 1.50 AWG 16 | 10.20 | 8.20 | 17.50 |
| 141040250 | 4 x 2.50 AWG 14 | 11.60 | 13.70 | 24.90 |
| 141040400 | 4 x 4 AWG 12 | 14.20 | 22.00 | 36.00 |
| 141040600 | 4 x 6 AWG 10 | 16.30 | 30.00 | 45.80 |
| 141041000 | 4 x 10 AWG 8 | 20.00 | 55.30 | 72.80 |
| 141041600 | 4 x 16 AWG 6 | 28.20 | 80.00 | 117.80 |
| 141042500 | 4 x 25 AWG 4 | 30.80 | 140.90 | 213.90 |
| 141043500 | 4 x 35 AWG 2 | 35.40 | 185.60 | 231.80 |
| 141050050 | 5 x 0.50 AWG 20 | 9.10 | 5.50 | 13.80 |
| 141050100 | 5 x 1 AWG 18 | 10.20 | 7.80 | 17.30 |
| 141050075 | 5 x 0.75 AWG 19 | 10.10 | 6.90 | 16.70 |
| 141050150 | 5 x 1.50 AWG 16 | 11.30 | 10.80 | 21.80 |
| 141050250 | 5 x 2.50 AWG 14 | 12.80 | 17.20 | 31.70 |
| 141050400 | 5 x 4 AWG 12 | 15.60 | 26.50 | 42.90 |
| 141050600 | 5 x 6 AWG 10 | 18.00 | 39.80 | 56.00 |
| 141051000 | 5 x 10 AWG 8 | 22.40 | 66.70 | 90.50 |
| 141051600 | 5 x 16 AWG 6 | 28.70 | 108.70 | 140.70 |
| 141053500 | 5 x 35 AWG 2 | 41.00 | 245.40 | 291.70 |
| 141070050 | 7 x 0.50 AWG 20 | 10.00 | 6.40 | 15.90 |
| 141070100 | 7 x 1 AWG 18 | 11.00 | 10.00 | 20.70 |
| 141070075 | 7 x 0.75 AWG 19 | 10.80 | 8.80 | 19.80 |
| 141070150 | 7 x 1.50 AWG 16 | 11.80 | 14.00 | 26.50 |
| 141070250 | 7 x 2.50 AWG 14 | 14.00 | 22.50 | 38.90 |
| 141090100 | 9 x 1 AWG 18 | 11.40 | 8.64 | 16.80 |
| 141120050 | 12 x 0.50 AWG 20 | 12.70 | 10.90 | 27.10 |
| 141120100 | 12 x 1 AWG 18 | 14.60 | 17.70 | 36.50 |
| 141120075 | 12 x 0.75 AWG 19 | 13.90 | 15.30 | 33.30 |
| 141120150 | 12 x 1.50 AWG 16 | 15.50 | 24.00 | 45.00 |
| 141120250 | 12 x 2.50 AWG 16 | 18.00 | 35.90 | 63.20 |
| 141180050 | 18 x 0.50 AWG 20 | 14.90 | 14.90 | 36.80 |
| 141180100 | 18 x 1 AWG 18 | 17.00 | 25.00 | 50.40 |
| 141180075 | 18 x 0.75 AWG 19 | 16.10 | 20.40 | 44.60 |
| 141180150 | 18 x 1.50 AWG 16 | 18.50 | 36.90 | 65.70 |
| 141180250 | 18 x 2.50 AWG 14 | 21.10 | 51.30 | 89.60 |
| 141250050 | 25 x 0.50 AWG 20 | 17.00 | 19.90 | 47.30 |
| 141250100 | 25 x 1 AWG 18 | 19.40 | 31.40 | 66.70 |
| 141250075 | 25 x 0.75 AWG 19 | 18.80 | 27.10 | 60.50 |
| 141250150 | 25 x 1.50 AWG 16 | 21.70 | 43.80 | 86.00 |
| 141250250 | 25 x 2.50 AWG 14 | 24.60 | 68.10 | 120.00 |
| 141340100 | 34 x 1 AWG 18 | 22.80 | 41.20 | 90.80 |
| 141340075 | 34 x 0.75 AWG 19 | 22.00 | 34.40 | 80.90 |
| 141340150 | 34 x 1.50 AWG 16 | 24.40 | 59.10 | 115.70 |
| 141410100 | 41 x 1 AWG 18 | 20.60 | 39.36 | 81.00 |
| 141410150 | 41 x 1.50 AWG 16 | 23.90 | 59.10 | 92.00 |
